Superheterodyne receiverer

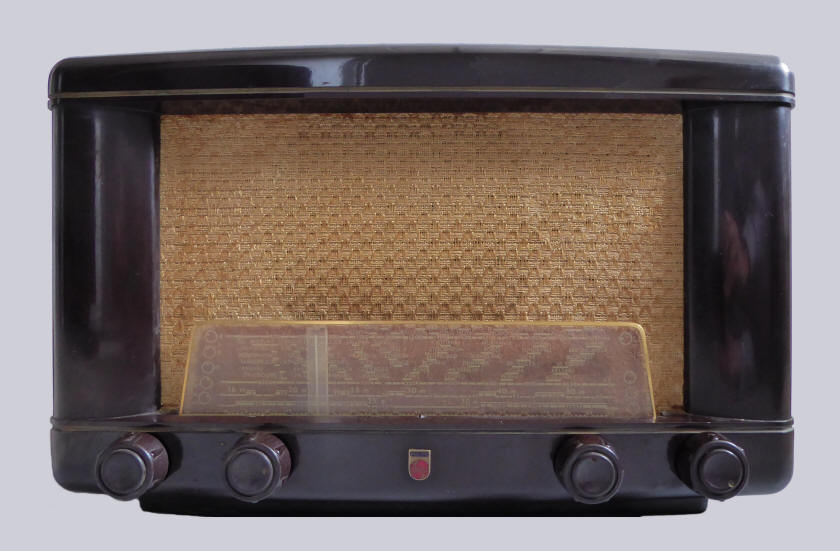

In dark brown Bakelite cabinet, front with gold coloured trim, brown bakelite knobs, iluminated glass station scale with gold coloured rim and reddish brown background. For medium wave (185-580 meters), long wave (715-2000 meters) and two short wave bands (16.4-50,5 and 25-31,6 meters with band spread).
The knobs from left to right: tone control in steps for radio and gramophone, on-off/volume, wave length switch, tuning. A connection for antenna and earth are situated at the back, as well as a connection for a gramophone and an extra loudspeaker.
The original price was f 208,-
Data Valves
Serial number: 22030
Dimensions (w×h×d): 40 x 25.5 x 21 cm
Made in: 1949
Given to me in: 2016
Sold in: 2018
Voltages: 110, 125, 145, 200, 220, 245 Volt ~
Weight: 7.5 kg
Click on a valve for more information

Circuit

What was broadcast in 1949?


Listen to "Blue Moon" sung by Mel Tormé with orchestra, leader Pete Rugolo, recorded in 1949

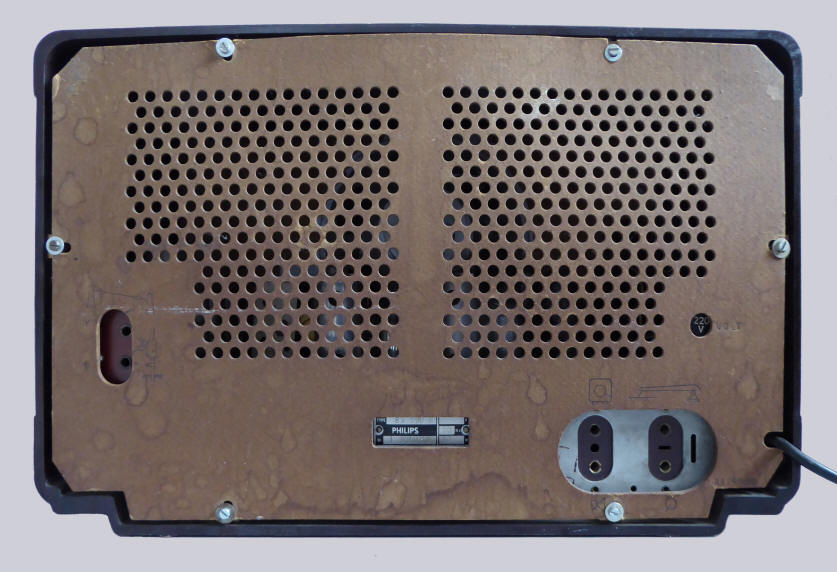

Back with back panel

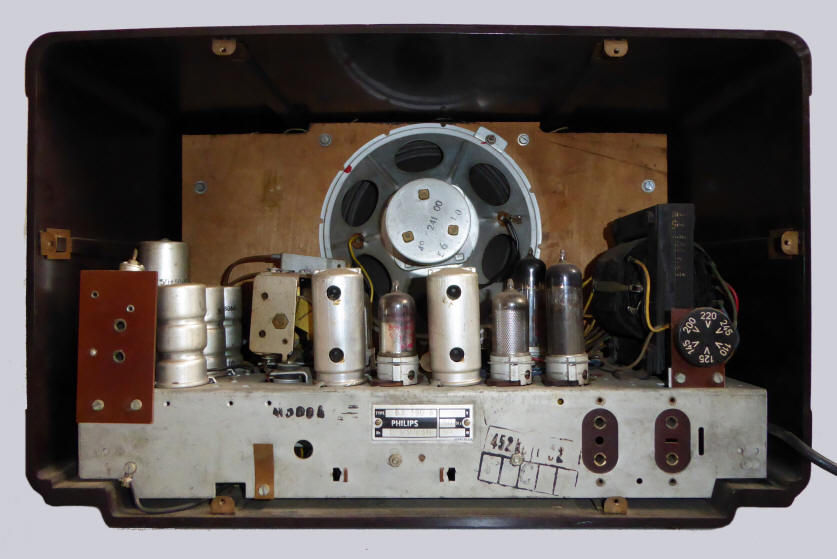

Back with back panel removed

Under-chassis view
