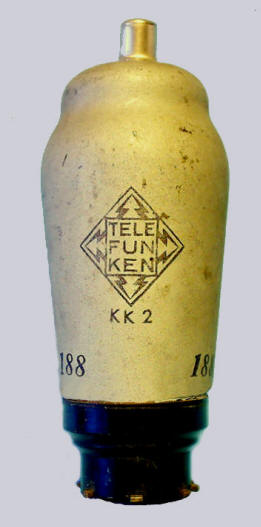

Octode for battery receivers
Introduced in 1935
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
tc |
base |
| m |
f-,g6 |
f+ |
- |
g2 |
g1 |
g3,g5 |
a |
g4 |
P |
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
tc |
base |
|
m,g6 |
+f |
-f |
g3,g5 |
g1 |
g2 |
a |
g4 |
C |
| Vf |
Af |
Va |
Vs |
Vg |
mAa |
mAs |
ra |
gm |
Pdiss |
| 2 |
0.13 |
135 |
135 |
0 |
0.7 |
2.1 |
2,500,000 |
0.27 |
0.5 |
| Equivalent |
BMO61, CV3516,
TKK2 |
|
