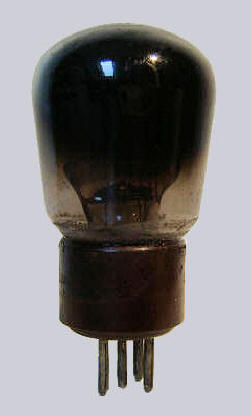

Philips B443 five pin version
|
|
|

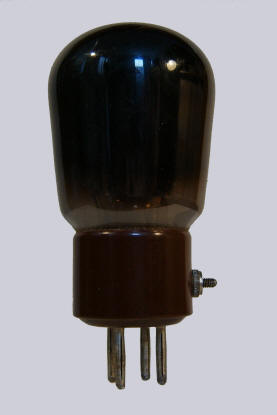

Philips B443
with side contact |
|
Output pentode
Introduced in 1927

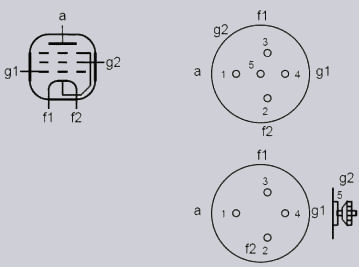

| 1 |
2 |
3 |
4 |
5/sc |
base |
| f |
a |
f |
g1 |
g2 |
B4/B5 |
| Vf |
Af |
Va |
Vs |
Vg |
mAa |
mAs |
Ra |
gm |
Pout |
Pdiss |
| 4 |
0.15 |
250 |
150 |
-19 |
12 |
2.4 |
45,000 |
1.3 |
1.35 |
3 |
| Equivalent |
2-443, 410PT,
D100, D100N,
DX3, L43, L415D, L506, M1004, PM24,
PP415,
R79,
RES174,
RO4243,
TB43, W443 |
|
