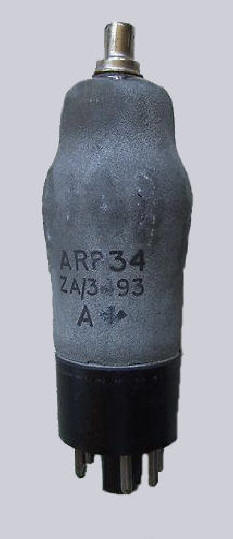

HF pentode
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
tc |
base |
|
s |
f |
a |
g2 |
g3 |
- |
f |
k |
g1 |
octal |
| Vf |
Af |
Va |
Vs |
Vg |
mAa |
mAs |
ra |
gm |
Pdiss |
| 6.3 |
0.2 |
250 |
125 |
-3 |
10.5 |
2.6 |
600,000 |
1.65 |
2.75 |
| Equivalent |
5732, 6K7, 6M7, 6U7,
BVA246,
CV1053, CV1195, CV1941, CV1942,
CV1943, CV706, EF39,
OM6, VR53, VT85, VT86,
VT180, W63 |
|
|
|
