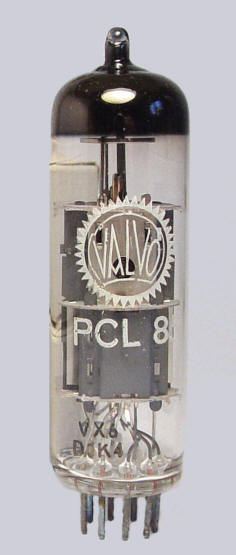

Triode-pentode for
television
|
|
Introduced in
1960
|
|
|
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
base |
| a(t) |
g(t) |
k(t) |
f |
f |
a |
g2 |
k,g3,s |
g1 |
B9A |
| Pentode |
Vh |
Ah |
Va |
Vs |
Vg |
mAa |
mAs |
ra |
gm |
Pdiss |
| |
18 |
0.3 |
170 |
170 |
-15 |
41 |
2.7 |
25,000 |
7.25 |
7 |
| Triode |
Va |
Vg |
mAa |
ra |
gm |
Pdiss |
| |
100 |
-0 |
10 |
9,000 |
5.5 |
0.5 |
| Equivalent |
18GV8, 5517, PCL805 |
|
|
|
