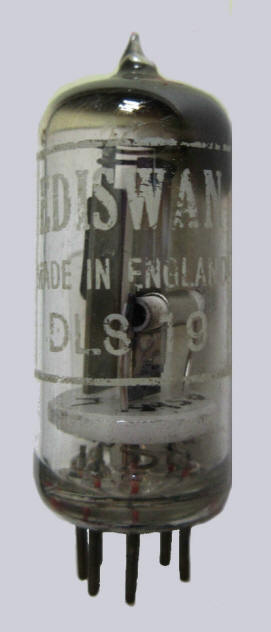

Ediswan DLS19





Vacuum thermal delay switch

Delay 35-70 sec for filament voltage range from 2-8 volts. Maximum switch current at 250 volts AC: 2A (r.m.s.)



1 2 3 4 5 6 7 Base
f nc moving contact fixed contact nc nc f B7G



Vf Af
6.3 0.5
