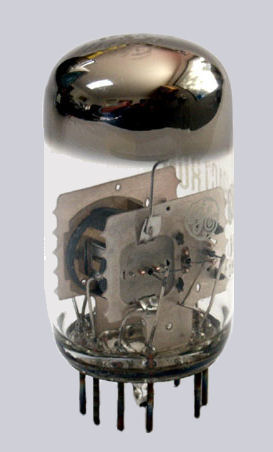

Double triode/pentode for television receivers
Introduced in 1961
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
base |
|
f |
k(t2) |
a(t2) |
g(t2) |
k(t1) |
g(t1) |
a(t1) |
g1(p) |
g2(p) |
a(p) |
k(p),g3,s |
f |
decar 12 |
| |
Vf |
Af |
Va |
Vs |
Vg |
mAa |
mAs |
ra |
gm |
Pdiss |
| pentode |
6.3 |
0.8 |
125 |
125 |
-1 |
12 |
4 |
200,000 |
7.5 |
2.5 |
| triode |
|
|
125 |
|
-1 |
13.5 |
|
5,400 |
8.5 |
2.5 |
|
