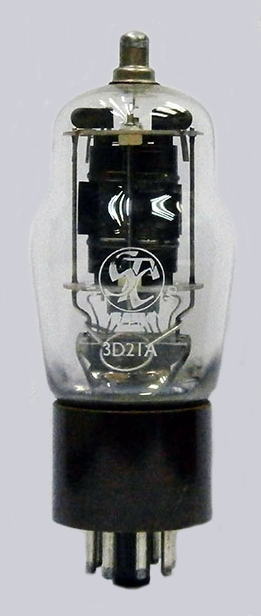

Beam power tube
with filament tap for 12.6V,
0.85A with sections in series
Introduced in 1957
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
tc |
base |
| fct |
f |
nc |
g2 |
nc |
g1 |
f |
k,g3 |
a |
octal |
|
Vf |
Af |
Va |
Vs |
Vg |
mAa |
mAs |
ra |
gm |
Pout |
|
6.3 |
1.7 |
800 |
400 |
-150 |
4500 |
|
5 |
5.5* |
7 |
*) at Va=600, Vs=300, Vg=-30
| Equivalent |
5B/152D, CV2659 |
|
