Signal generator

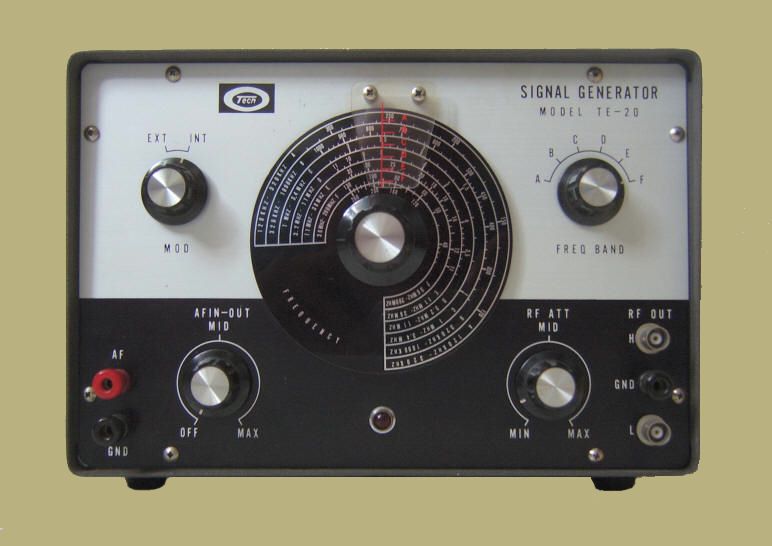

A simple signal generator, used for receiver alignment. The generator has six bands, from 120 FC to 260 MC. It was introduced in 1963. Tubes: 6AR5 and 12BH7. The central knob is connected to a planetary gear. When is turned to the right, the frequency scale rotates to the left. Can be used with internal and external modulation. Short user manual here.
