25Y5

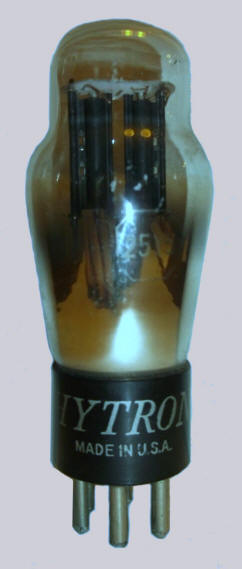

Hytron 25Y5

Full wave rectifier

Introduced in 1934

25Z5 with increased anode cathode spacing for 220 volt sets

1	2	3	4	5	6
f	a(2)	k(2)	k(1)	a(1)	f

Vf	Af	Va	mAa
25	0.3	235	150

Equivalent

25Z5, CV942
