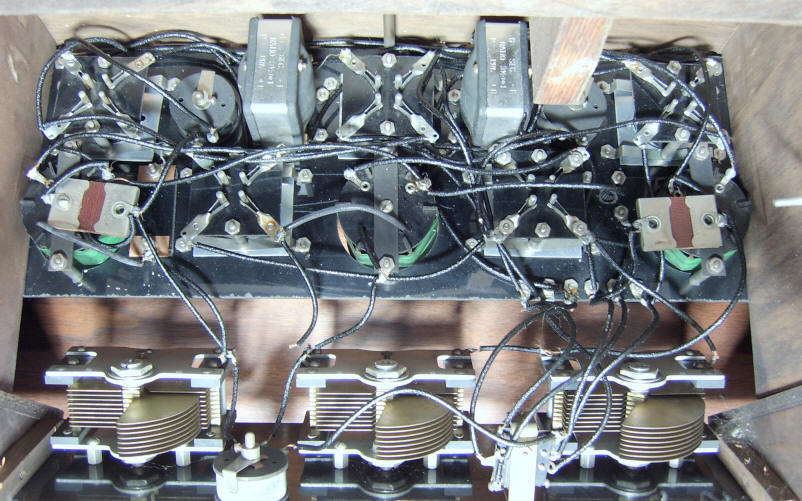

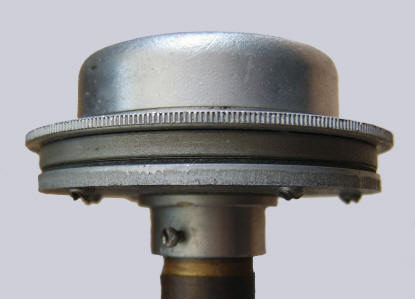

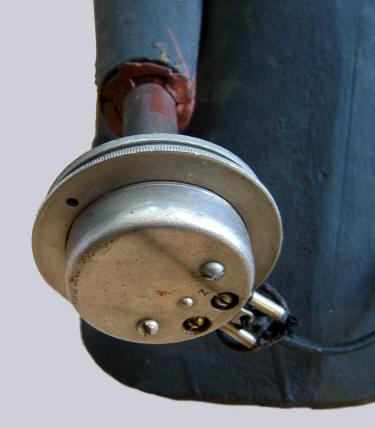

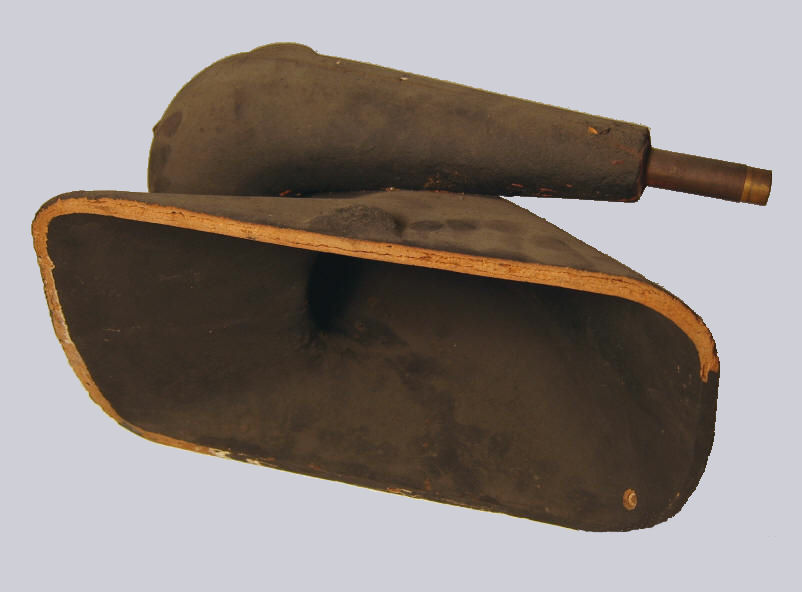

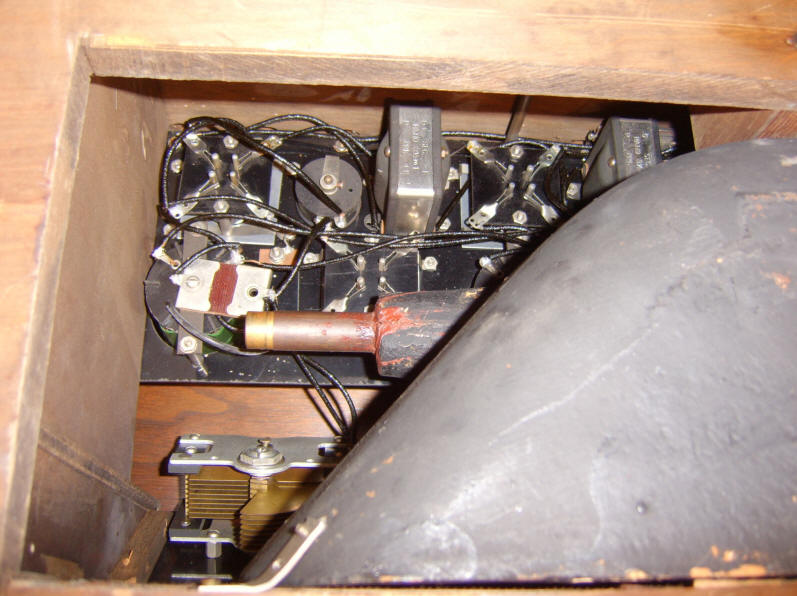

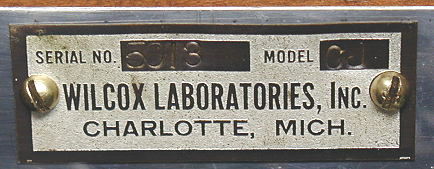

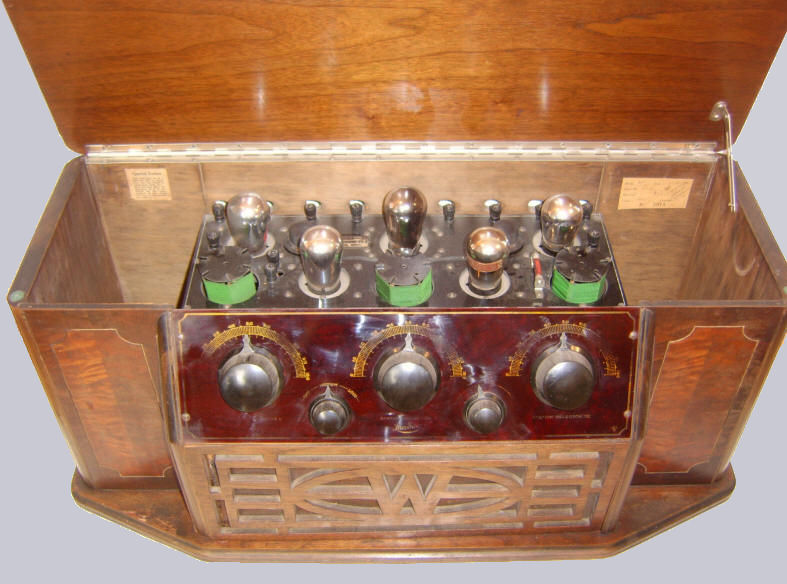

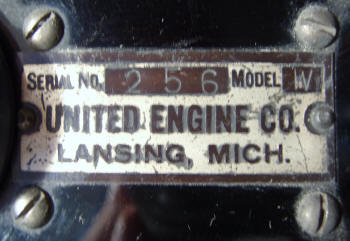

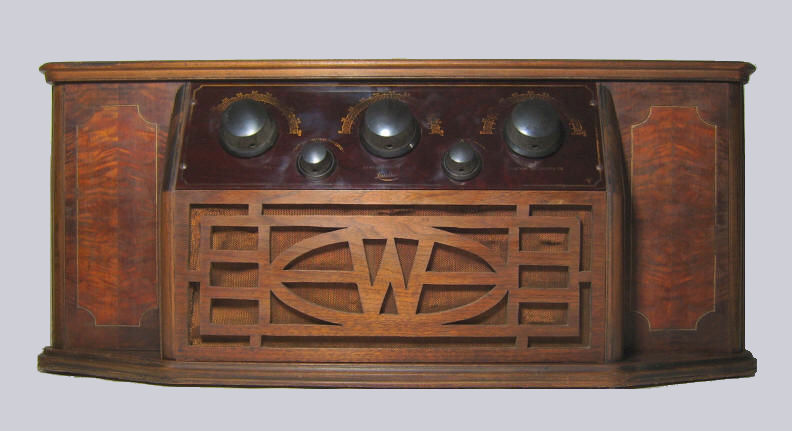

TRF battery receiver with triple control tuning Made in 1925. Originally sold for $140. Veneered cabinet. Build-in wooden loudspeaker. Probably made for United Engine Co. by Wilcox Laboratories, Charlotte, Michigan (see below). Data Valves   Serial number: 256 Dimensions: 75 × 33 × 32,5 cm Made in: 1925 Purchased in: 2007 Click on a valve for more information Circuit Top view. Tubes: UX171, CeCo Type A, UX201A, 401A, CeCo Type A. The radio probably owes its name to the W-shaped line-up of the tubes and the knobs on the front panel. The UX171, first made in 1926, must be a later addition. This tube gives more amplification then a standard 01 tube. The CeCo Type A is almost identical to a 01 tube. Bottom view. The speaker driver was missing. A view inside the radio, after the loudspeaker was removed. The loudspeaker A fitting driver was found: a Western Electric 523W. Control label and type plate. The radio was last repaired on May 3rd, 1929. This is proof that the radio was probably made by Wilcox Laboratories: the type plate of the Lansing W (above) is almost identical to that of a Cathedral Junior. (Picture by Radiola Guy)
