| Three valve
(+ rectifier) AC receiver |
|
In oak cabinet with coloured pertinax
front. The gold coloured "Harophone" print between both
tuning knobs has faded. For medium and long wave. One HF, one detecor and one LF valve. The radio was made by the
Waldorp factory in The Hague. It may be a Harophone WP
or a Harophone kit. Advertisements for this kit were
placed in the VARA radio guide (see advertisement below). |
|

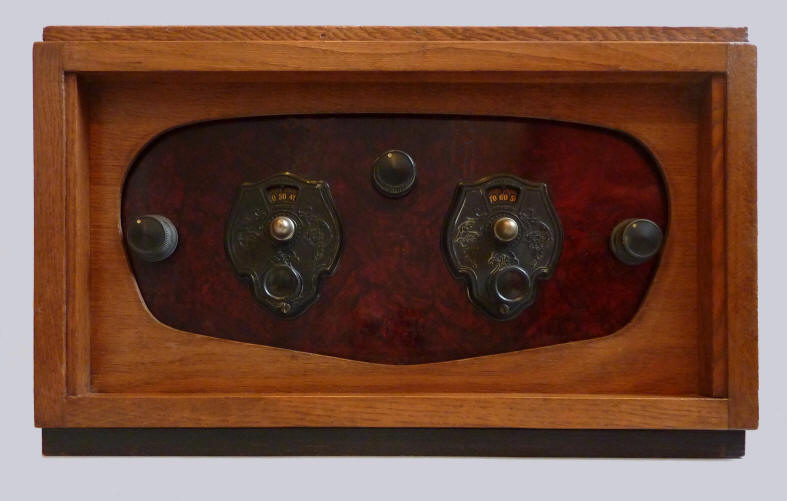

The knobs from left to right: selector
switch for volume control in steps, primairy tuning, wave length switch
(two positions for medium wave and long wave), secondary tuning,
reaction control. |
| Serial number: |
Cabinet 50693, later changed to 50793, chassis
3114 |
| Dimensions (w×h×d): |
48.5 × 28.5 × 28.5 cm |
| Made in: |
1930 |
| Purchased in: |
2011 |
| Voltage: |
125 volt ~ |
|
 |
Click on a valve for more
information |
 |
Click on the circuit to
enlarge |
|
|
