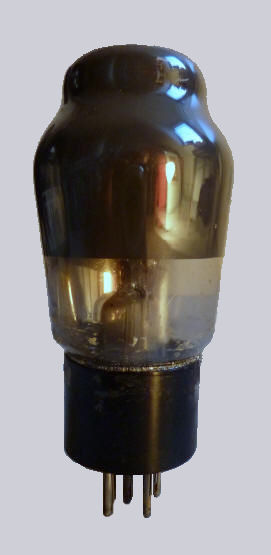

Pentode/penthode
Introduced in
1933
| 1 |
2 |
3 |
4 |
5 |
voet/base |
| a |
f |
f |
g1 |
g2 |
B5 |
| Vf |
Af |
Va |
Vs |
Vg |
mAa |
mAs |
Ra |
gm |
Pout |
Pdiss |
| 4 |
1.1 |
400 |
300 |
-30 |
28 |
6.8 |
33,000 |
1.8 |
3 |
9 |
| Equivalents |
5-443, D1004, DW11,
DW3, E443, L491D,
L496D, PM24C,
PM24M, RES664D,
RES964, RS4543, T1304,
TE43H, TV4110, W443, W516 |
|
|
