.jpg)
|
|
| |

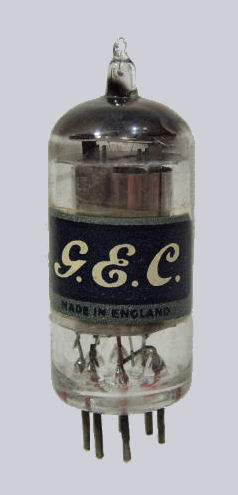

| Output pentode for battery
receivers |
|
with central filament tap for 2.8 V,
0.05 A operation |
| Introduced in 1950 |
| |
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
| f- |
a |
g2 |
- |
fct,g3 |
g1 |
f+ |
|
Vf |
Af |
Va |
Vs |
Vg |
mAa |
mAs |
ra |
gm |
Pout |
|
1.4 |
0.1 |
90 |
90 |
-4.5 |
9.5 |
2.1 |
100,000 |
2.15 |
0.27 |
| Equivalents |
1P11, 3V4, CV1633,
DL94, CV2983 |
|
|
|
