Electronic

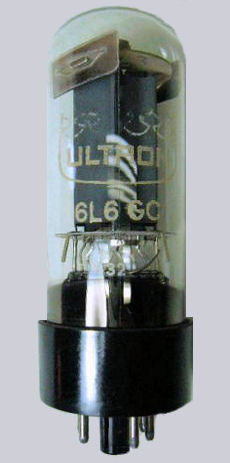

Tubes Ltd. 6L6G |
|
.jpg)
|
Beam power amplifier (tetrode)
Introduced in 1936
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
| m |
f |
a |
g2 |
g1 |
- |
f |
k |
| Vf |
Af |
Va |
Vs |
Vg |
mAa |
mAs |
ra |
gm |
Pout |
Pdiss |
| 6.3 |
0.9 |
350 |
250 |
-14 |
72 |
5 |
22,500 |
6 |
6.5 |
19 |
| Equivalents |
6L6G, 6L6GT, CV1286, CV1947,
CV1948, VT115, VT115A |
|
