Screened pentode
Introduced in 1936
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
tc |
|
m |
f |
a |
g2 |
g3 |
- |
f |
k |
g1 |
| Vf |
Af |
Va |
Vs |
Vg |
mAa |
mAs |
ra |
gm |
Pdiss |
| 6.3 |
0.3 |
250 |
125 |
-3 |
10.5 |
2.6 |
600,000 |
1.65 |
2.75 |
| Equivalents |

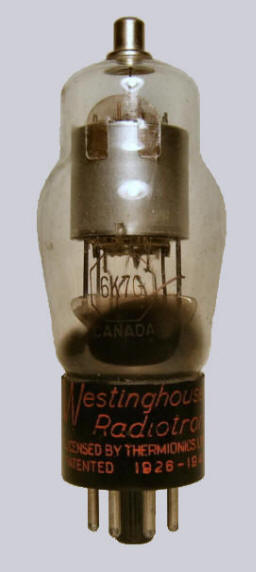

5732, 6K7G, 6K7GT, 6M7, 6U7, ARP15,
CV1195, CV1941, CV1053, CV1942, CV1943, CV706,
EF39 KTW63,
OM6, VT85, VT86, VT86A, W63 |
|
|
