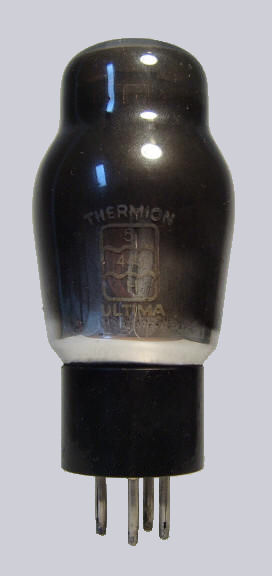

Pentode/penthode made by
Thermion
| 1 |
2 |
3 |
4 |
5 |
voet/base |
| a |
f |
f |
g1 |
g2 |
B4/5 |
| Vf |
Af |
Va |
Vs |
Vg |
Ra |
mAa |
mAs |
gm |
Pout |
| 4 |
0.9 |
400 |
300 |
-30 |
33,000 |
28 |
6.8 |
1.8 |
3 |
| Equivalents |
D1004, DW11, DW3,
E443, L491D,
L496D, PM24C, PM24M,
PP4100, PP4101, RES664D,
RES964, RS4543, T1304, TE43H, TV4110, W443,
W516 |
|
